What Is a Cable Cleat?



A cable cleat is a mechanical device designed to secure power cables to a support structure while maintaining their position during both normal operation and electrical fault conditions.



Unlike ordinary cable clips or clamps, cable cleats manufactured to IEC 61914 are specifically designed to resist the extreme electrodynamic forces generated during short circuits. Proper cable cleats help:



---

Why Cable Arrangement Matters



One of the first steps in selecting a cable cleat is identifying how the cables are arranged. Different cable configurations create different electromagnetic forces during operation and fault conditions, requiring different cleat designs.



The three most common configurations are:

---

China Stainless Steel Single Cable Cleats

What Is a Single Cable Cleat?



A single cable cleat is designed to secure one power cable individually. It is commonly used when each cable follows its own route or when cable spacing must be maintained independently.



Stainless Steel Single Cable Cleats Typical Applications

Advantages

Recommended Material

For outdoor or corrosive environments, 316L stainless steel is the preferred choice because of its excellent corrosion resistance and long service life.



---

China Stainless Steel Trefoil Cable Cleats

What Is a Trefoil Cable Cleat?

A trefoil cable cleat is designed to secure three single-core power cables arranged in a triangular (trefoil) formation. This arrangement minimizes magnetic effects and is widely used in medium- and high-voltage power distribution systems.



Why Choose Trefoil Arrangement?

Trefoil installation offers several advantages:

Stainless Steel Trefoil Cable Cleats Common Applications

Trefoil cable cleats are among the most widely specified solutions for modern critical power infrastructure.



---

China Quad Stainless Steel Cable Cleats Supplier

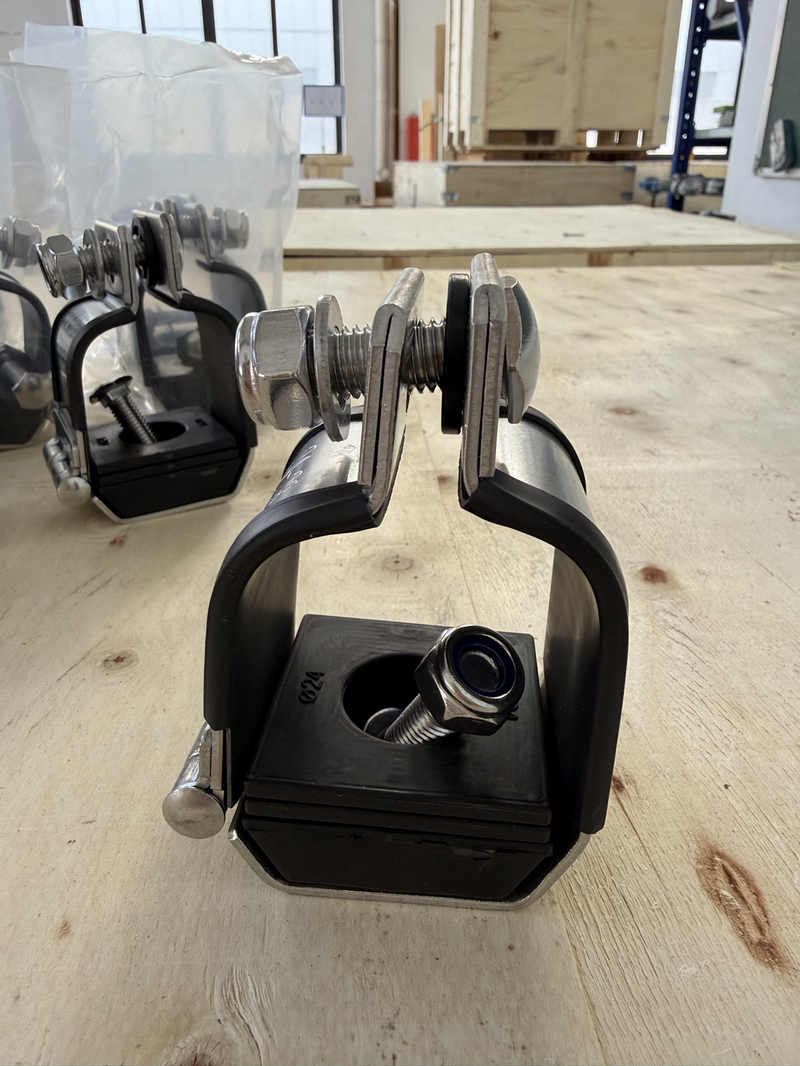

A quad cable cleat is designed to support four power cables arranged in a square configuration. It provides stable restraint where four parallel cables must be installed together while maintaining proper spacing.



Typical Applications

Advantages

---

Choosing the Right Material-316L Stainless Steel



The material of the cable cleat significantly affects its durability and service life.

As electrical systems become more powerful and complex, selecting the right cable management solution is increasingly important. 316L stainless steel cable cleats offer outstanding corrosion resistance, high mechanical strength, and reliable cable restraint for demanding environments. When combined with IEC 61914 compliance and verified short-circuit performance, they help protect critical power infrastructure while reducing maintenance and improving long-term reliability.



Whether your project involves a hyperscale data center, utility substation, railway tunnel, offshore platform, or renewable energy facility, choosing high-quality 316L stainless steel cable cleats is a sound investment in safety and performance.



Consider Installation Environment

Environmental conditions play a major role in cable cleat selection.
